BATTERY CHARGERS FOR EMU RAKES

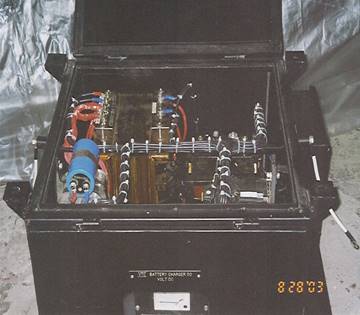

As per ICF Spec. Number:ICF/Elect/067-CS-A VTC 110VOLTS DC 20 Amps Constant Current (Ferro resonant type) Battery charging unit manufactured for Rolling Stock for Railway application as per INTREGAL COACH FACTORY /CHANNAI specification : ICF/Elect/067-CS-A is dry type air cooled transformer provided on the EMU.

TECHNICAL SPECIFICATION
INPUT VOLTAGE 160-290 VOLT 1 PHASE 50 HZ
OUTPUT VOLTAGE 115 VOLT DC
CHARGING CURRENT 20AMMPS
MAX.TEM.RISE 115 DEG CEL
PROTECTION LEVEL IP65
NOISE LABEL <50DB
Train speed 160 KMPH
Humidity Up to 95%
EQUIPMENT CONFIRMED TO THE FOLLOWING STANDRAD/SPECIFICATION
UIC 564-2 Regulation relating to fire protection and fire fighting measurement in passenger carring railway vechiles or assimilated
IEC 60529 Degree of protection provided by enclosures
IEC-61373 Railway application –Rolling stock equipment –shock And vibration tests
IS 2026-1999 Steel for general structure purpose
IS 2026 (PART-1 TO IV) Specification for power transformers; Terminal marking tapping and connection
IS 11171 Specification for Dry type Power transformers
IS 1885(Pt xxxviii) Electro-technica vocabulary for transformers
Is 1271-85 Theimal evaluation and classification for electrical insulation
Is 2551-1982 Danger Notice Plate
Is 13730 pt 13-93 Part 13 Polyester or polyesterimide over coated with Polymide –imide enameled round copper wire ,class 200
Is 13730 pt 29 Specification for particular type of winding wires’part 2 Polyester or polyertrimide over coated with polymideimide enameled rectangular copper wire class 200
Is 3024-1997 Specification for electrical steel sheet (oriented) CRGO
Is 1363-84 (paqrtii) Hex. Hd, Screws (M5-M36)
Is 694-1997 Method of testing steel sheets for magnetic circuits of power electrical apparalus
Is 6911-1992 Stainless steel plate sheet and strips
