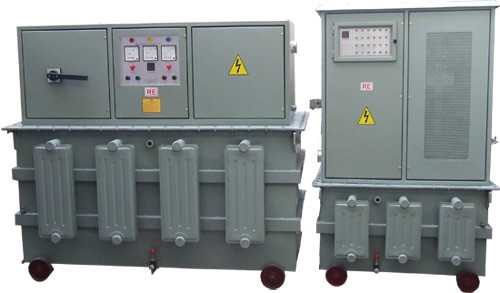

Rectifier

These are manufactured for various purposes like electroplating, anodizing, chemical processes, and power supplies for Magnetic Charger, Battery Charger, Copper and silver refining and Drawing Large Generator Motor Transformer etc. Each of the above listed products are a field of there own. The rectifiers are designed for continuous use. The electronic controls can be provided which are used for various functions optional like, current density control, voltage control, temperature, speed control etc.



SPECIAL FEATURES

  • • Highest rating available


  • • Various feature & functions upon request


  • • Electronic parameter monitoring.




TECHNICAL DETAILS

STEP DOWN TRANSFORMER : A double wound transformer is used for supplying high current at low voltage for testing.
CURRENT CONTROL A step less Auto Transformer is used for Controlling output current from Zero to Maximum.
INPUT VOLTAGE 230/415 Volts single/two/three phase 50Hz. AC supply
OUTPUT VOLTAGE RANGES As per customer requirement
OUTPUT CURRENT Upto 20000 Amps
CAPACITY Up to 500 KVA
METERING Multi range Ampere meter of class 1.5 with CT of class 0.5 are provided on secondary side to indicate output current.
PROTECTION ON-OFF Switch with fuse is provided to protect the unit against short circuit, push button to actual and cut of output.
HOUSING Each unit is housed in a MS sheet body, supported with angle iron frame. The oil cooled models are housed in suitable MS tank and the control panel is on the tank or as per requiems.
